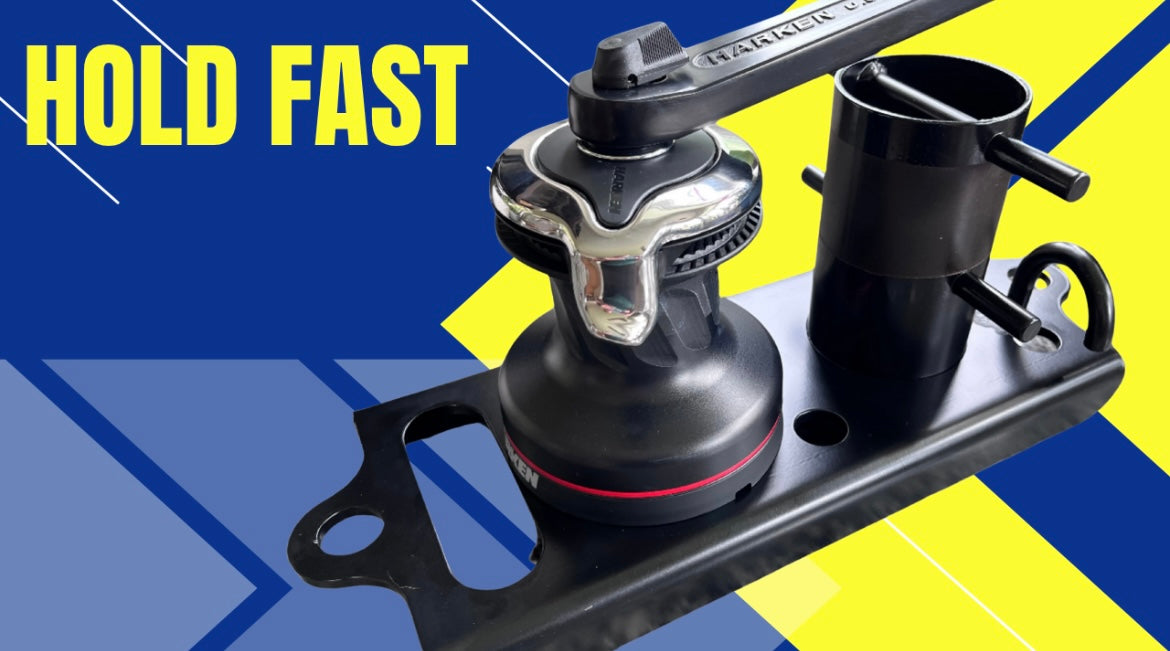

HOLD FAST OG RIGGING SYSTEM

Designed to be light and portable, the original HOLD FAST Rigging System combines the mechanical advantage of a self-tailing Harken winch with the strength and stability of a fixed bollard for simultaneous lifting and lowering capabilities in one compact package.

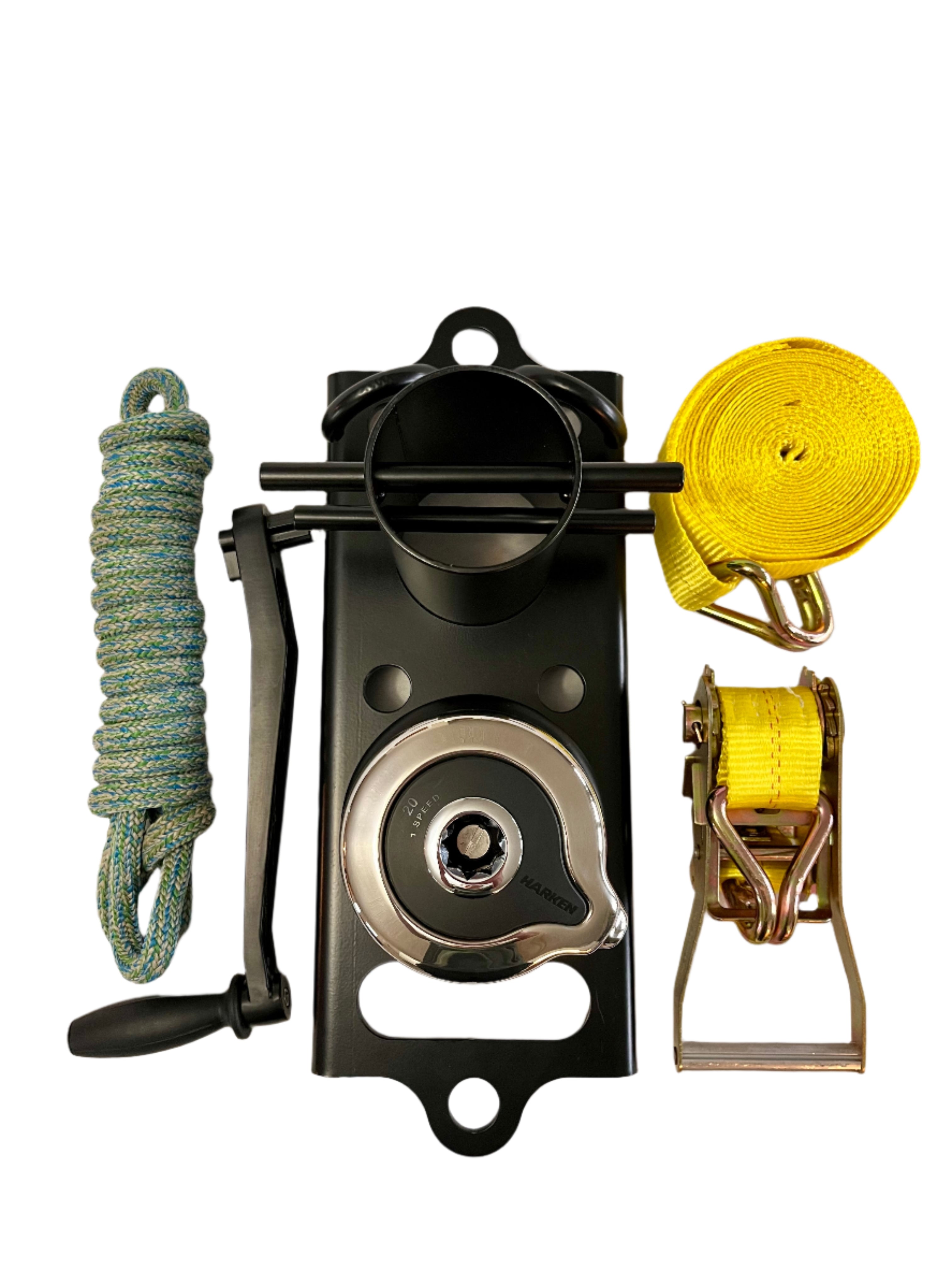

Kit includes:

• 1) Hold Fast OG Rope Management System
• 1) Dead eye sling (Color Varies)
• 1) Ratcheting strap
• 1) Winch Handle

Don't forget the Harken Winch Driver Bit for use with a Right Angle Drill for easier lifting!

Currently shipping within the USA only. International customers can purchase Hold Fast Rigging Systems through our authorized dealer Arbsession at arbsession.com.

Hold Fast Rigging Quick Start Guide

Hold Fast Rigging Safety Manual

Harken 20 Winch Manual

Hold Fast Rigging System Product Overview

Details

• Developed by working arborists to address everyday complex rigging challenges

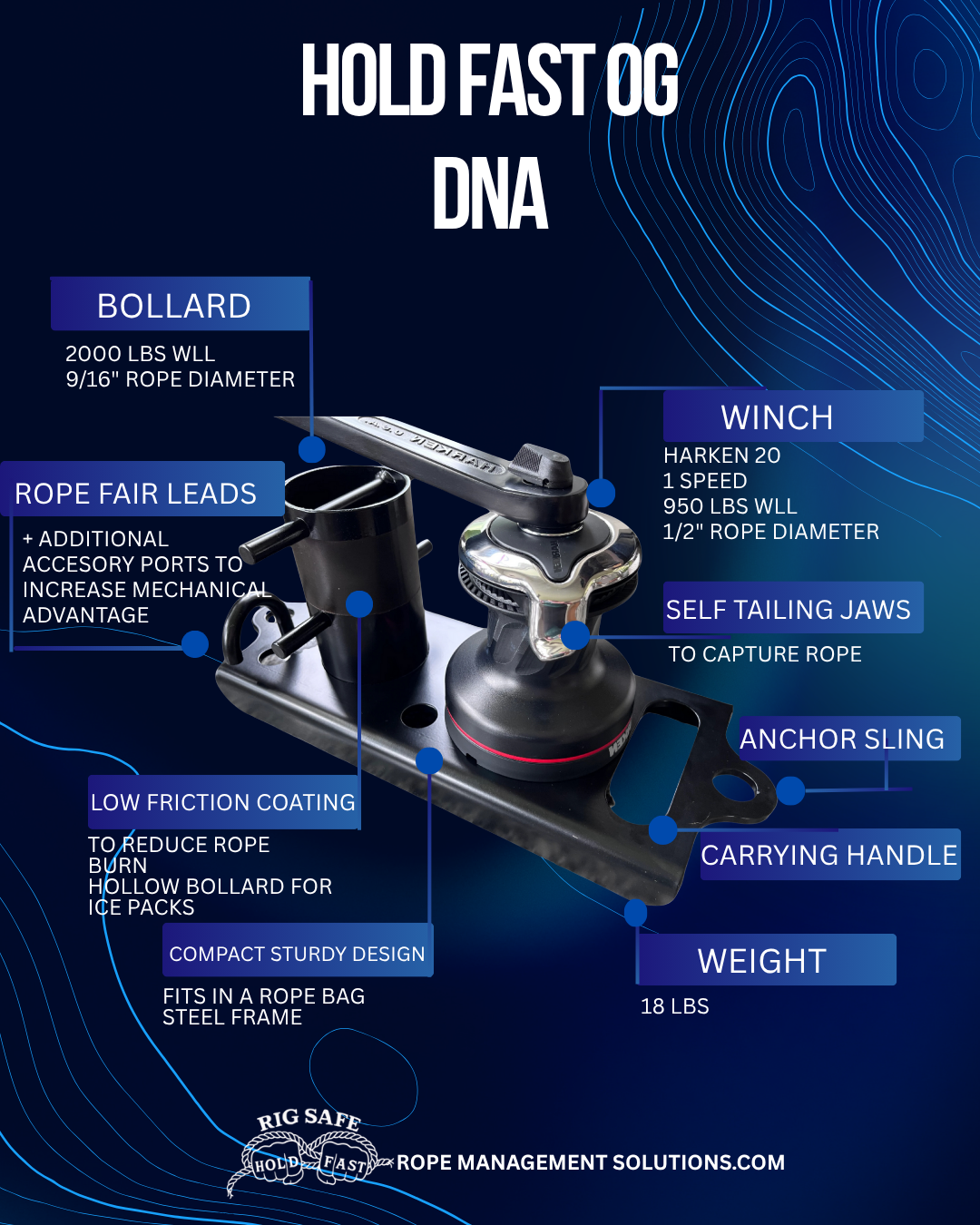

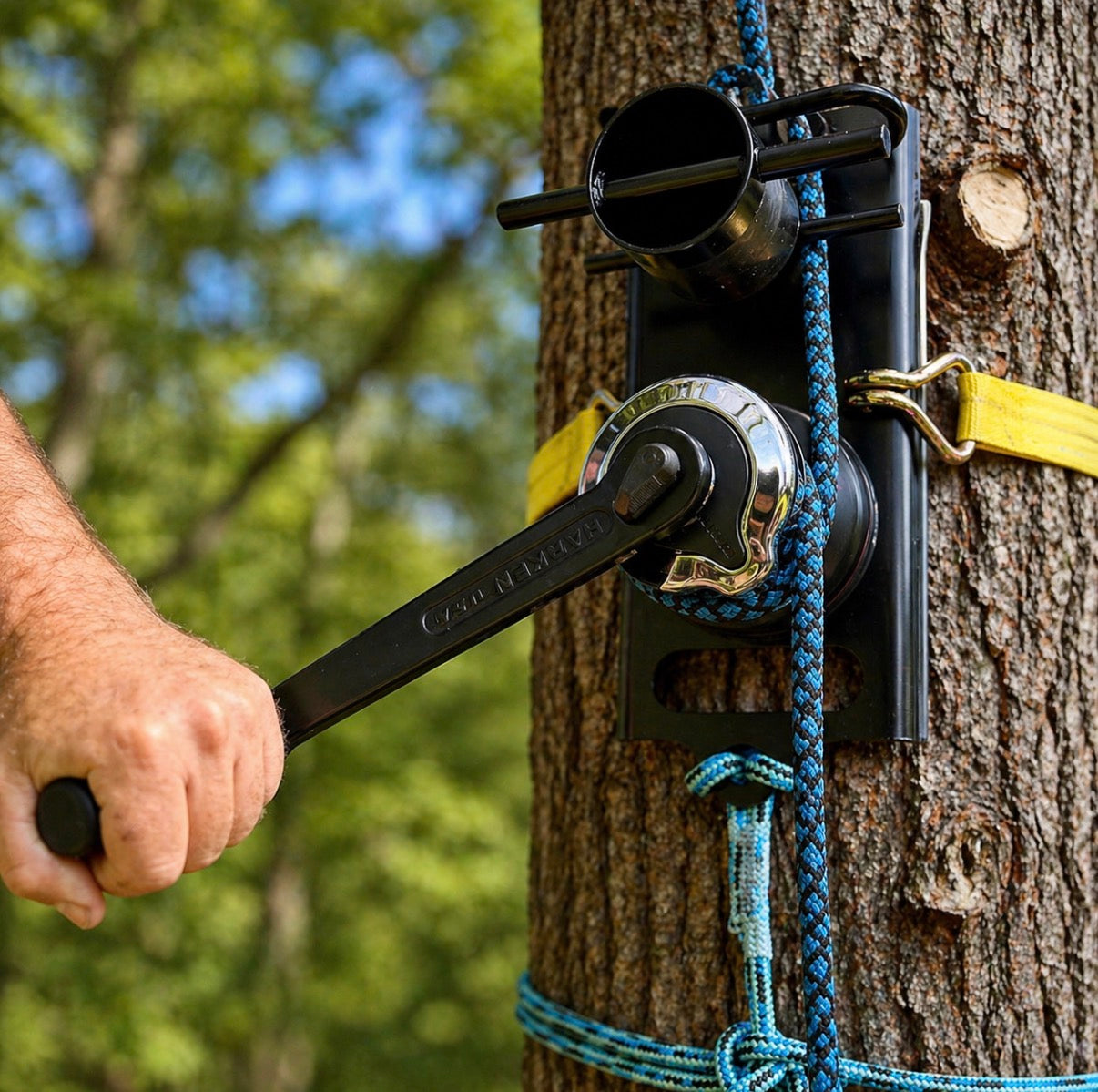

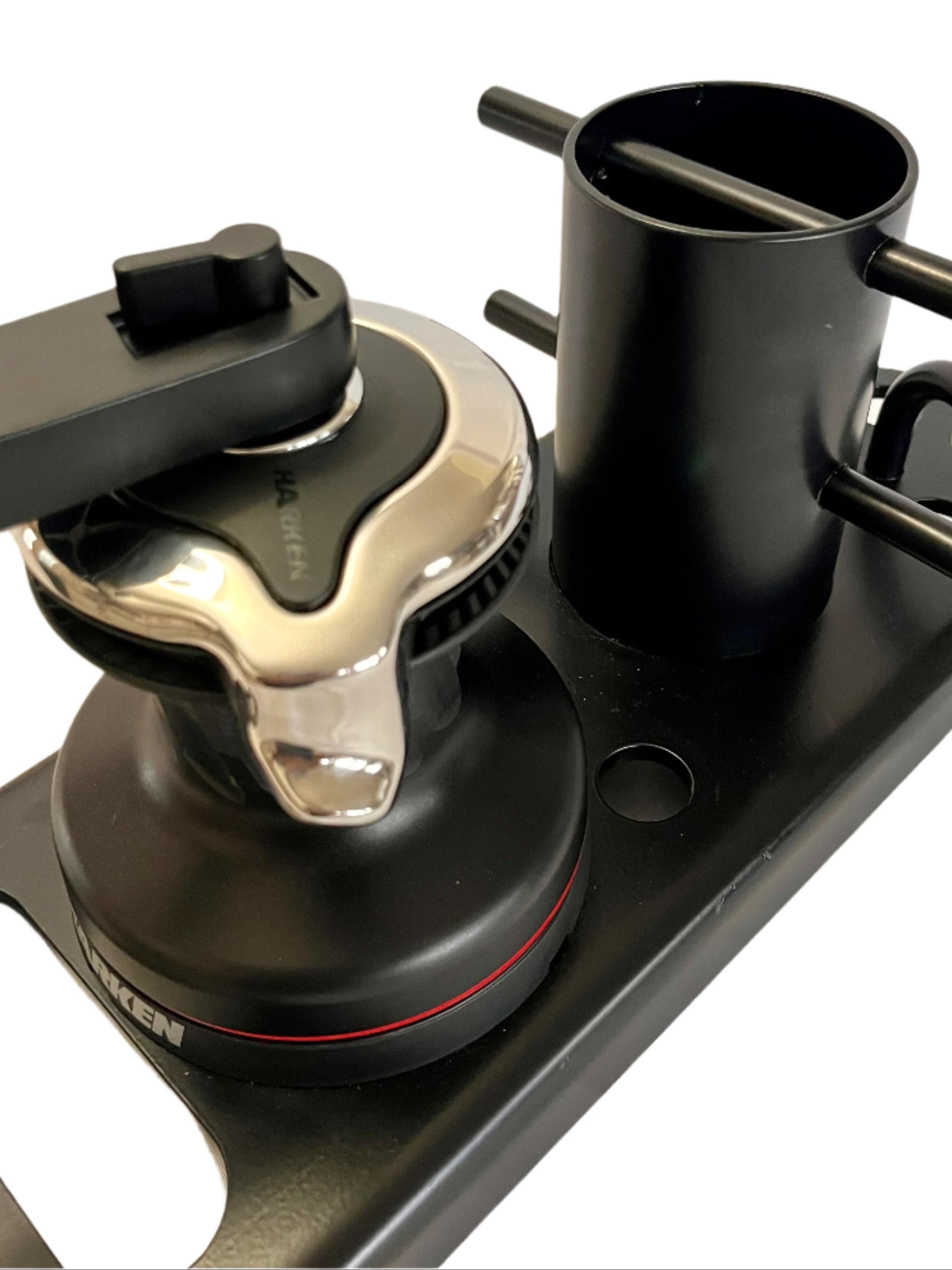

• Integrates a Harken Radial 20 self-tailing winch with a fixed bollard mounted on a compact steel rigging plate

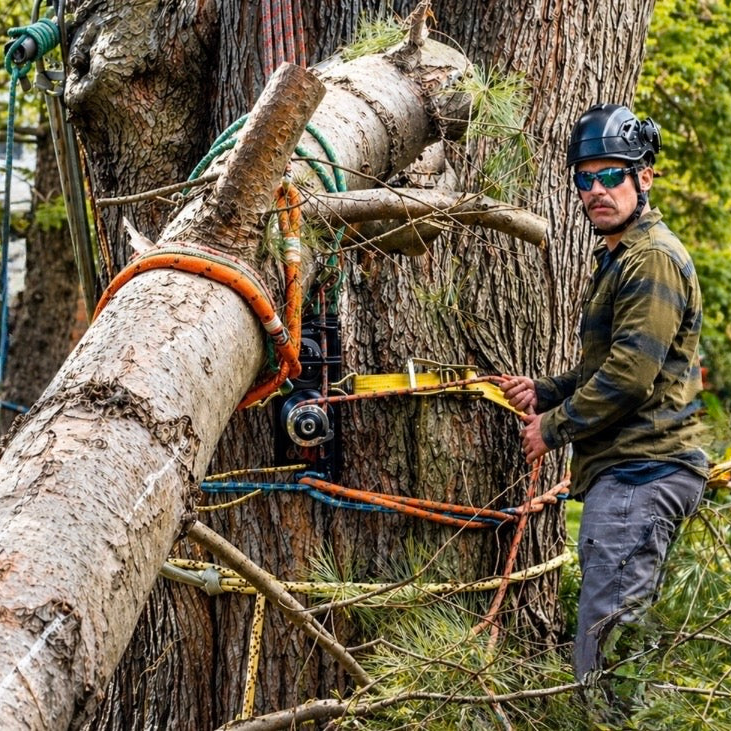

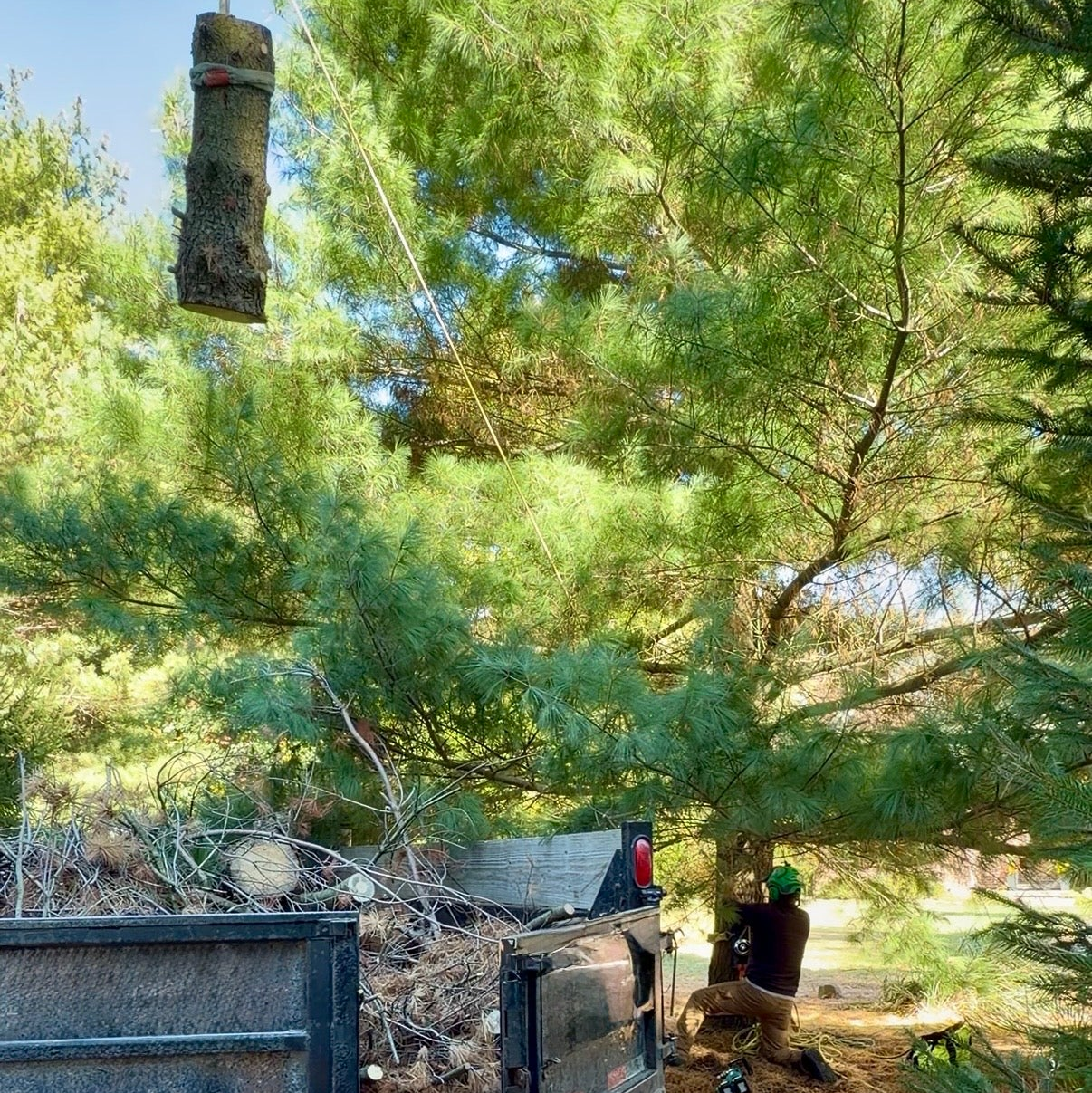

• Allows simultaneous lifting and lowering operations from one streamlined system

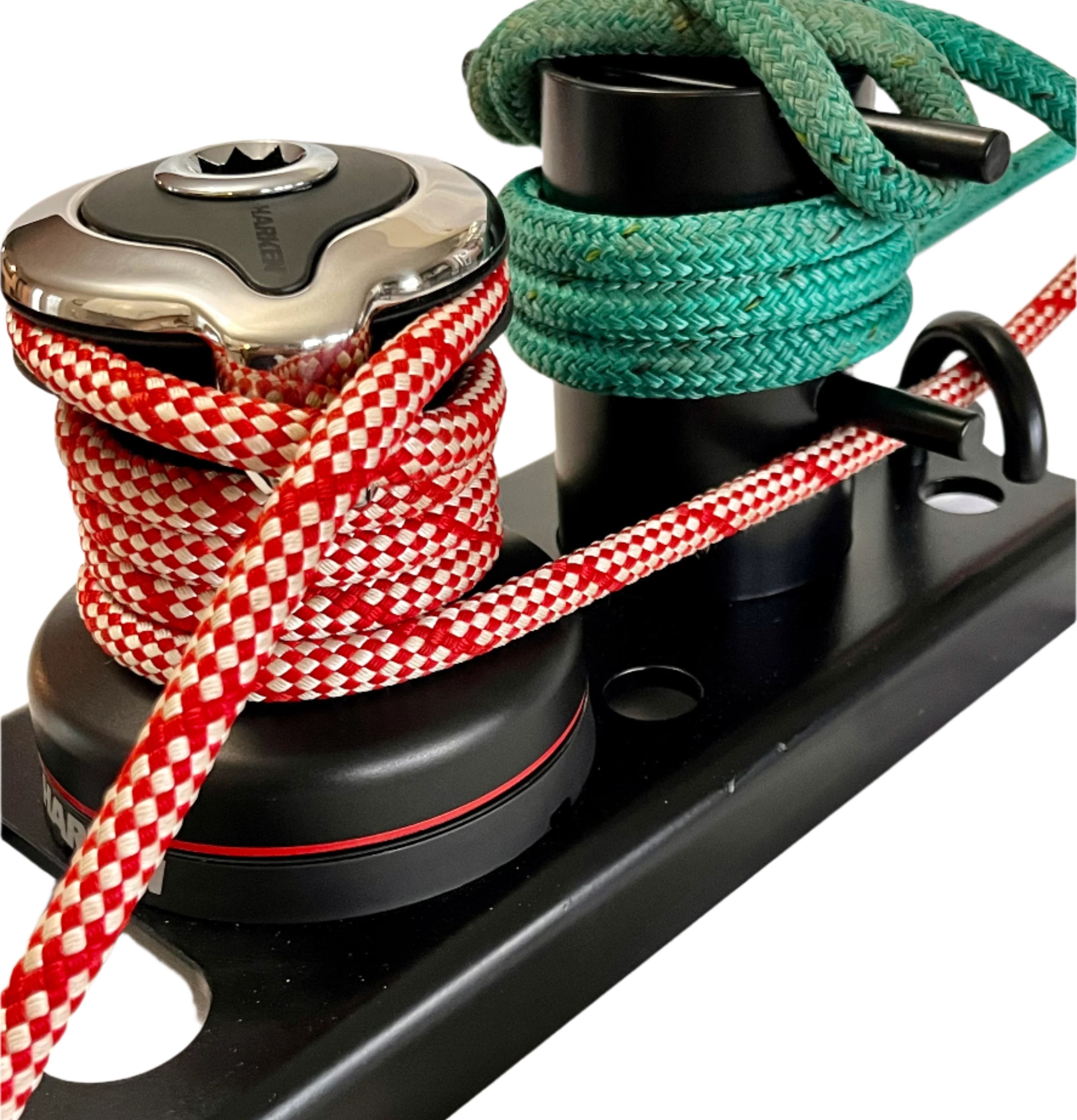

• Accepts either one rope or two separate ropes simultaneously for increased rigging versatility

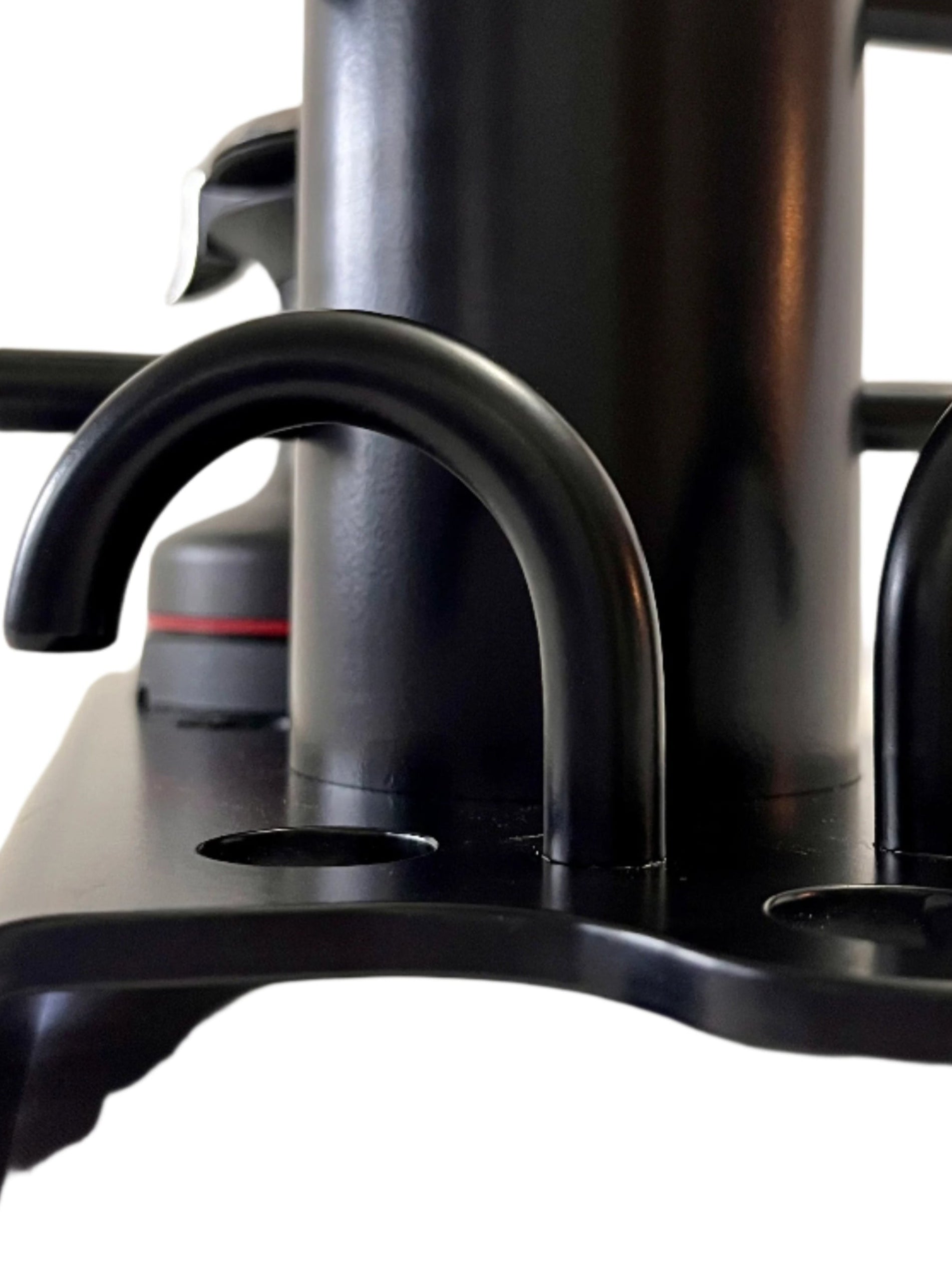

• Strategically placed fairleads help properly align running lines while supporting additional rigging accessories
• Compact and lightweight design allows for fast deployment and efficient setup in the field
• Powder-coated finish for durability and corrosion resistance
• Special bollard coating helps ropes run smoothly and cleanly during lowering operations

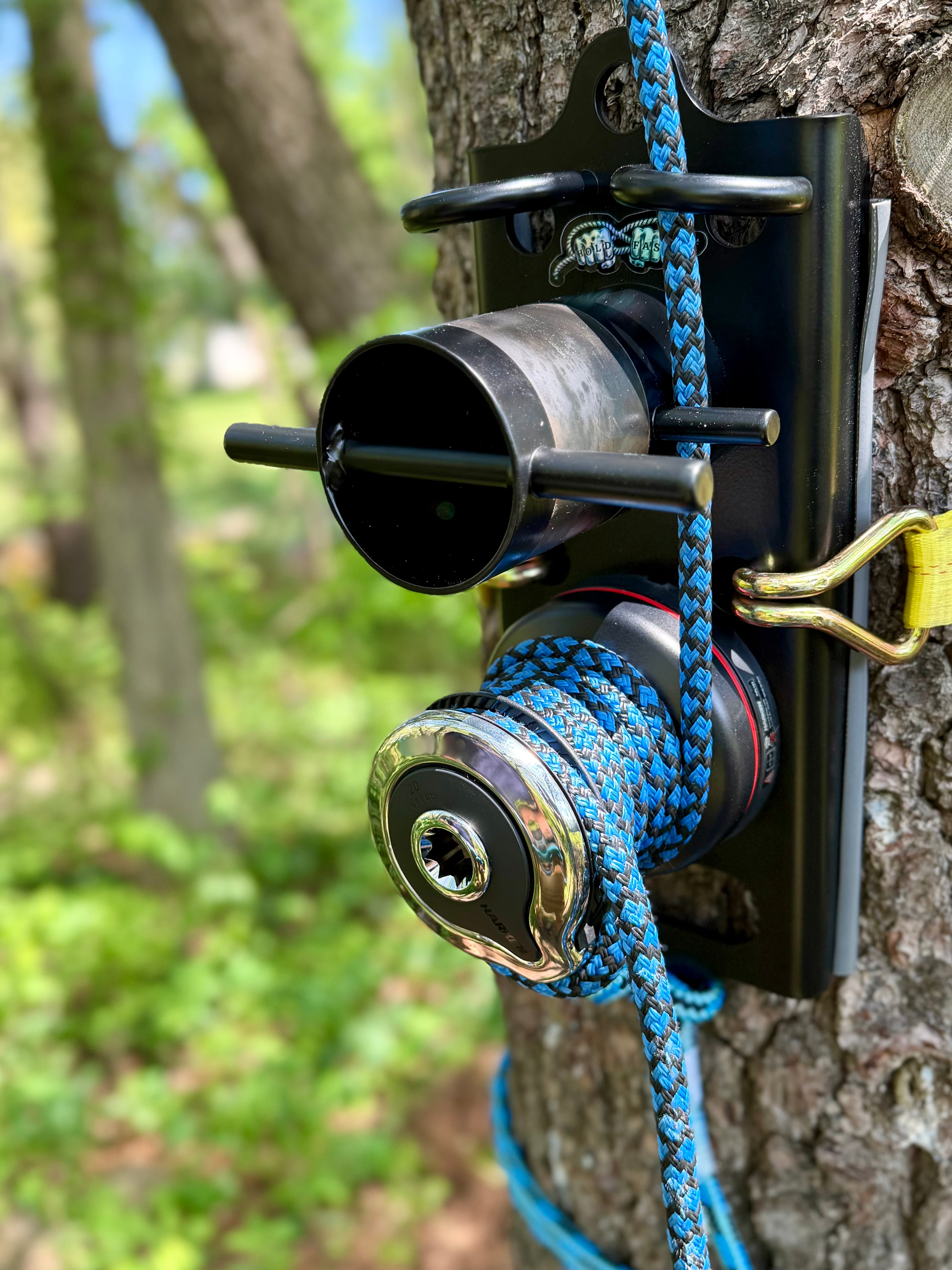

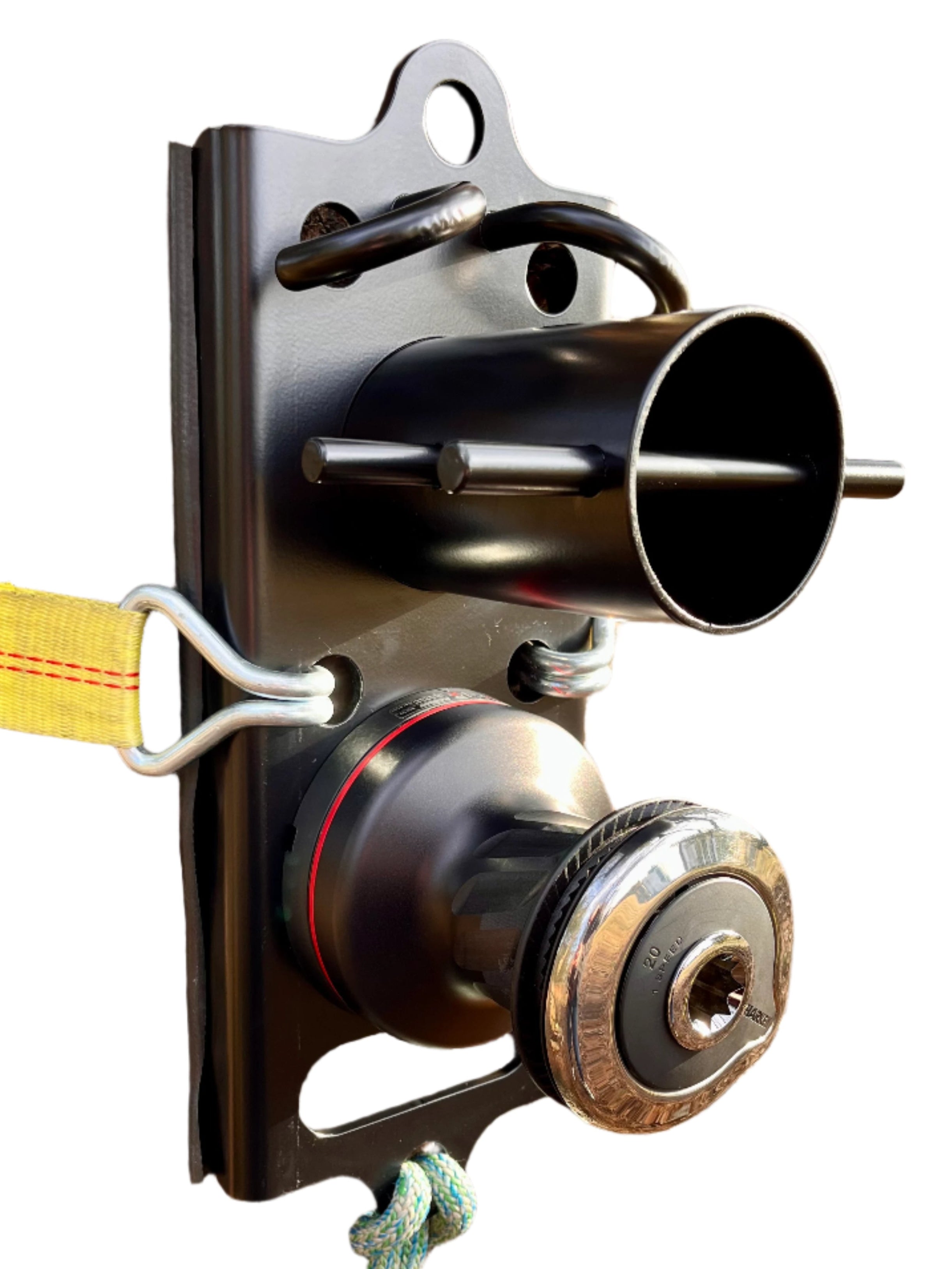

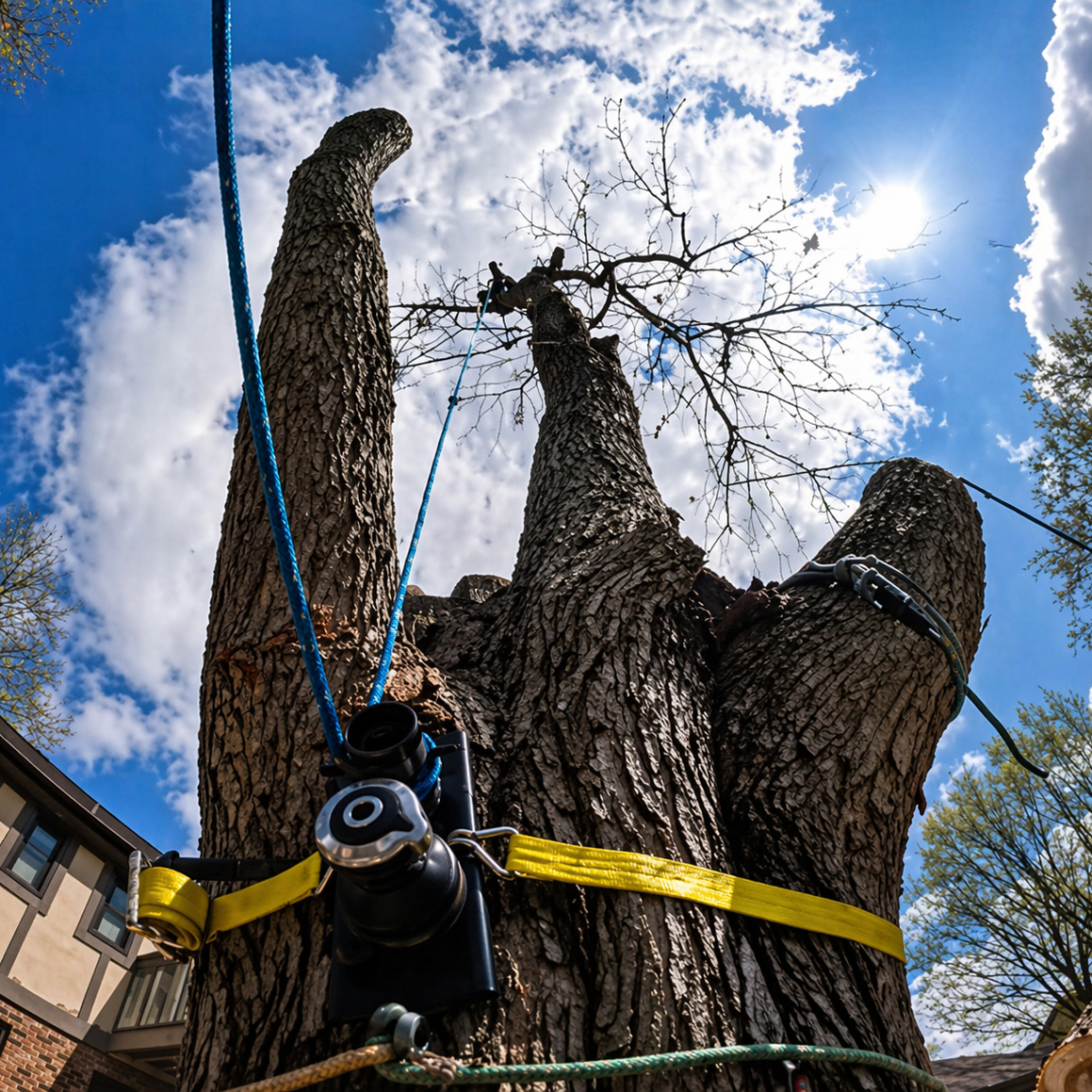

• Mounts vertically or horizontally, depending on the rigging application

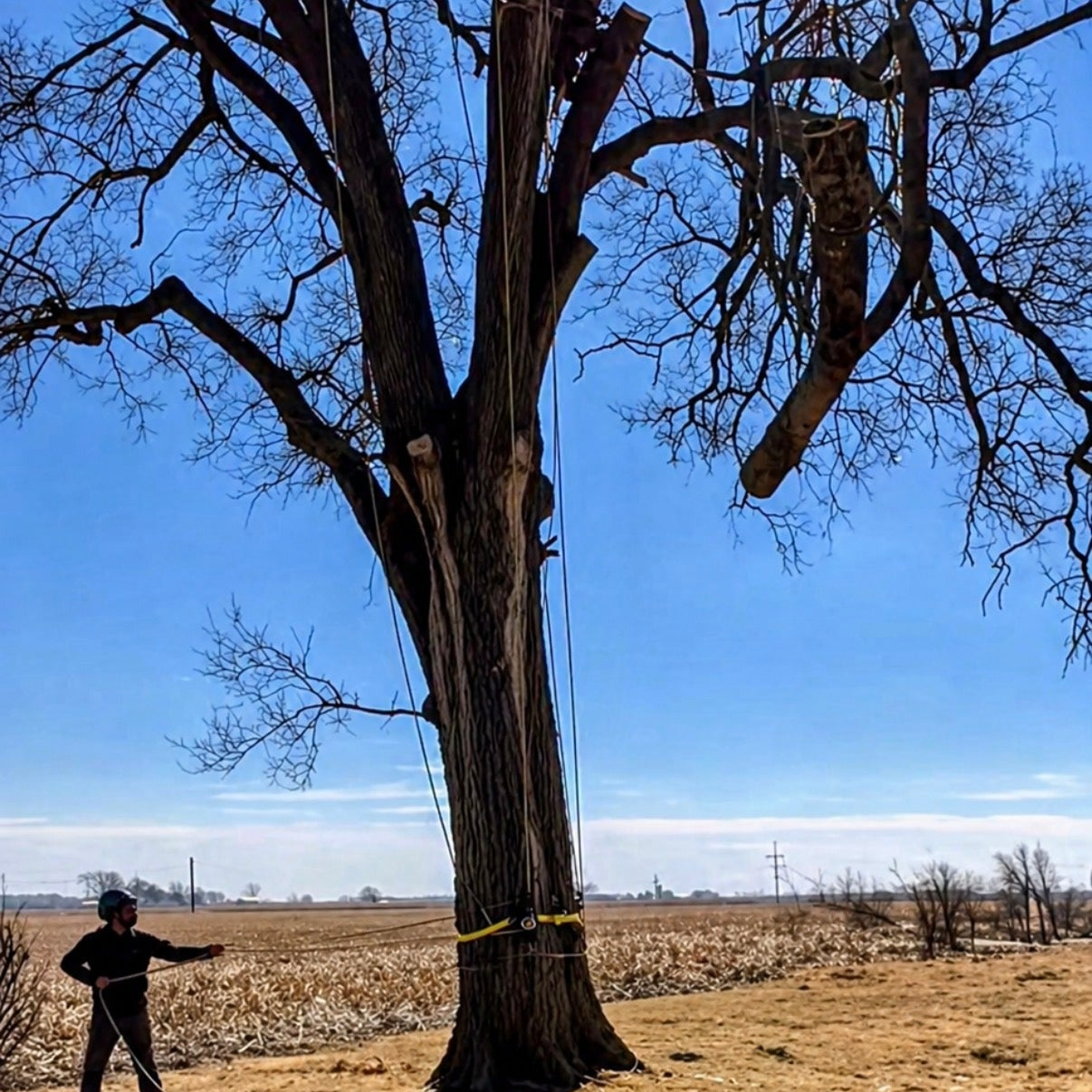

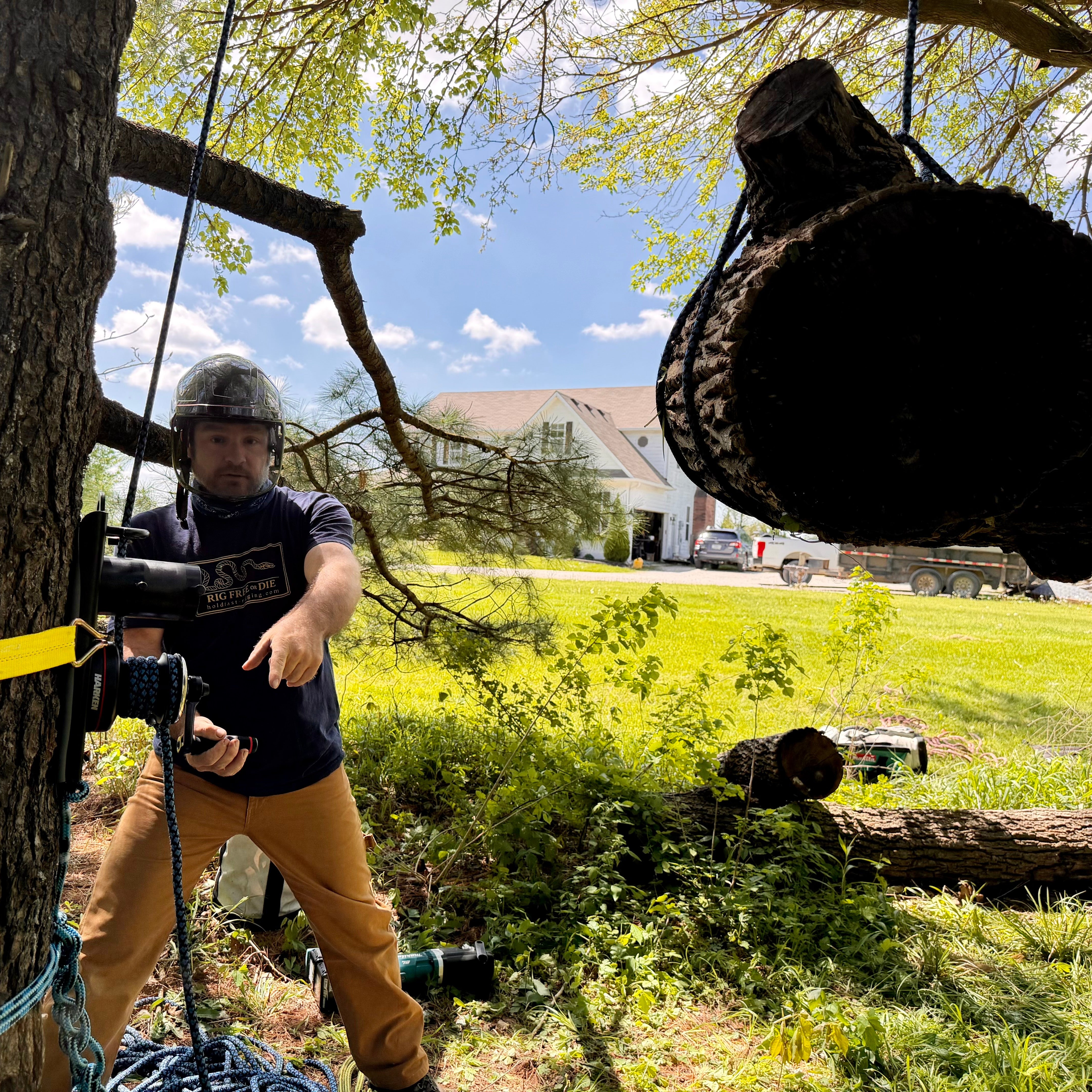

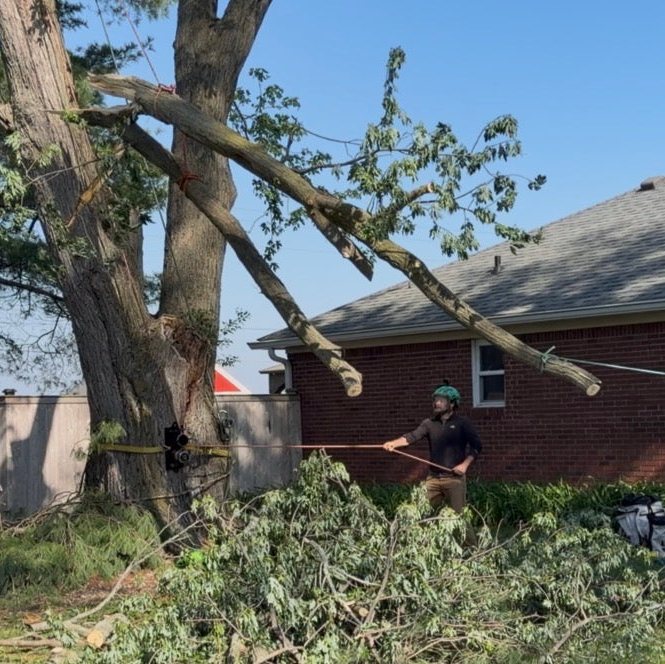

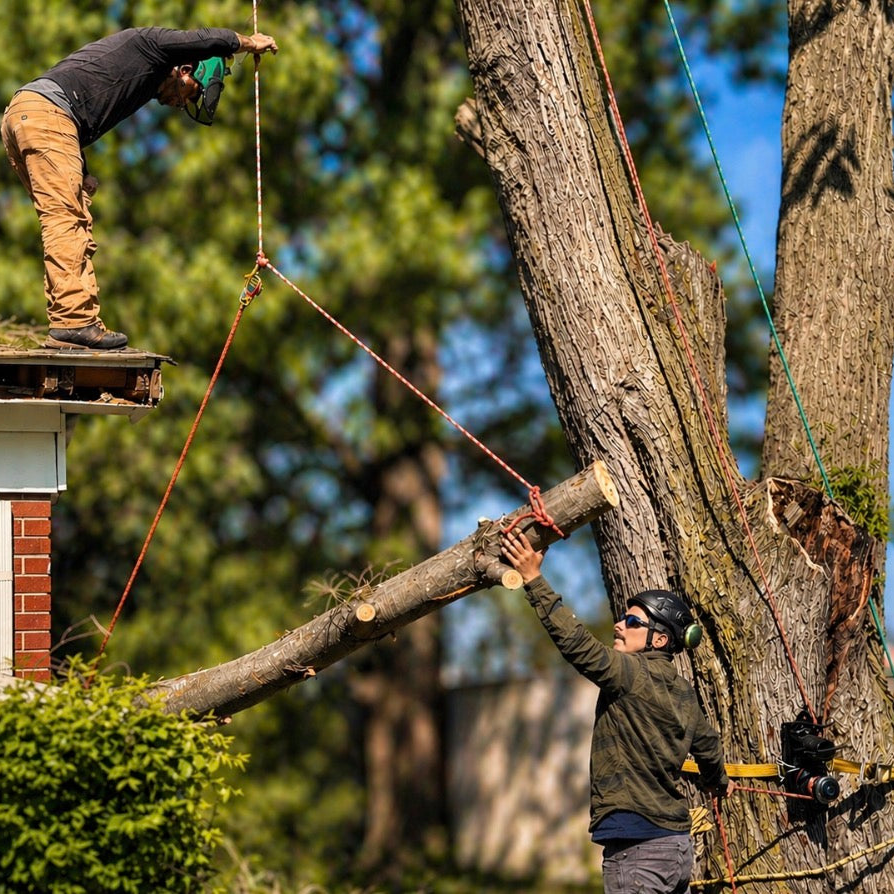

• Designed for precision rigging in tight drop zones and when working over roofs, fences, and obstacles

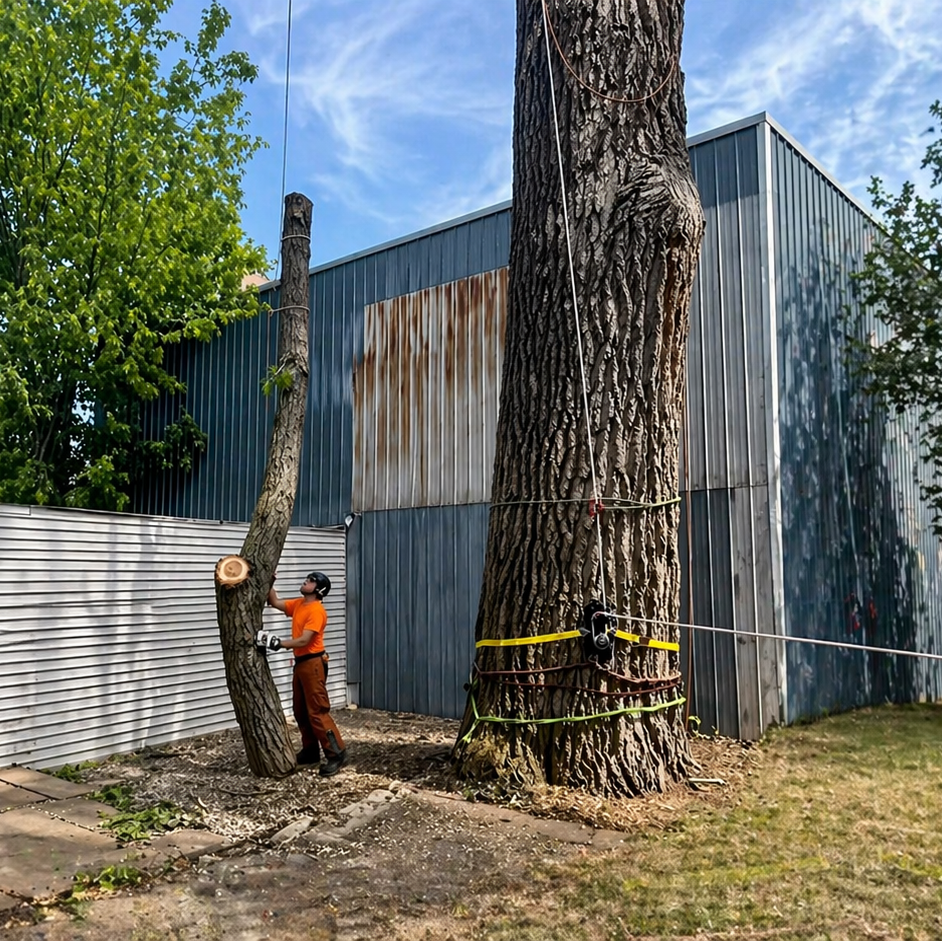

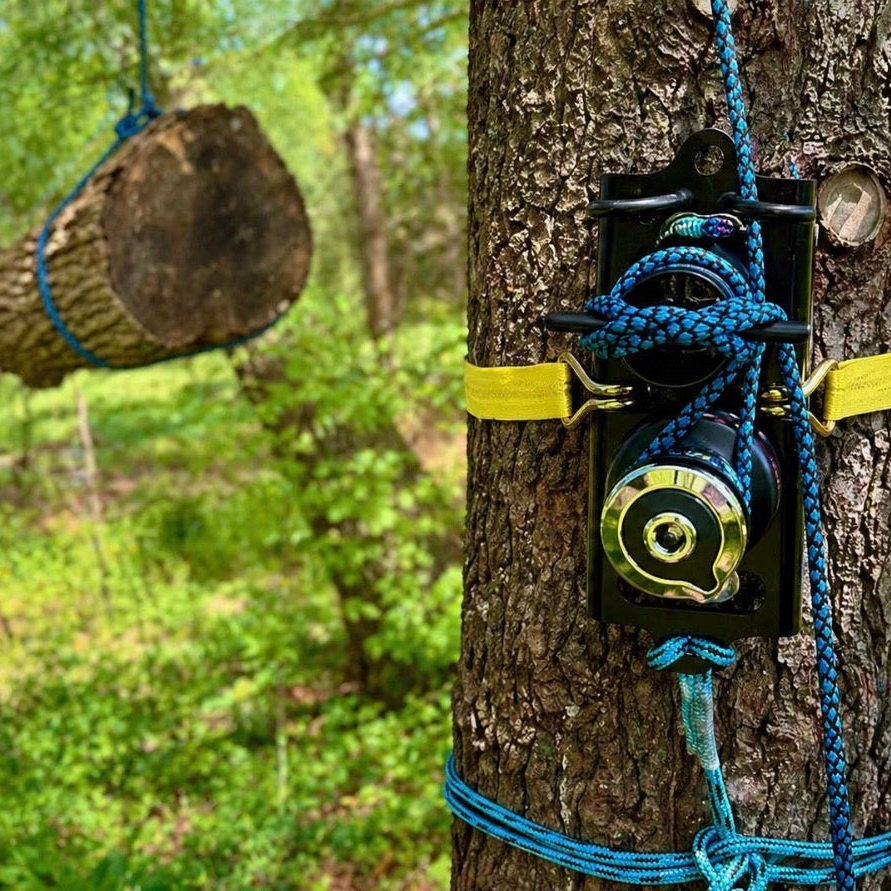

• Ratchet straps and dead-eye sling included for secure basal mounting
• Break tested and engineered with a 5:1+ safety factor
• Built and field-tested in the USA by professional arborists
• Scannable QR support resources available for setup instructions, manuals, and educational content
• Intended for use in accordance with ANSI Z133 safety practices

Specs

• Harken Radial 20 Self-Tailing Winch
• Approximate Mechanical Advantage: 19.2:1
• Winch Rope Capacity: 1/2”
• Fixed Bollard Rope Capacity: 9/16”
• Bollard Working Load Limit: 2,000 lbs
• Approximate System Weight: 18 lbs
• Plate Construction: 1/4” Steel
• Length: 18”
• Width: 6 3/4”
• Plate Height: 1.5”
• Bollard Height: 6”
• Total Height: 7.5”
• Mounting Configuration: Vertical or Horizontal
• Includes: Hold Fast OG Rigging System, Harken Radial 20 ST Winch, Fixed Bollard, Ratchet Straps, Dead-Eye Sling, Winch Handle
• Country of Manufacture: USA
• MPN:HF100
