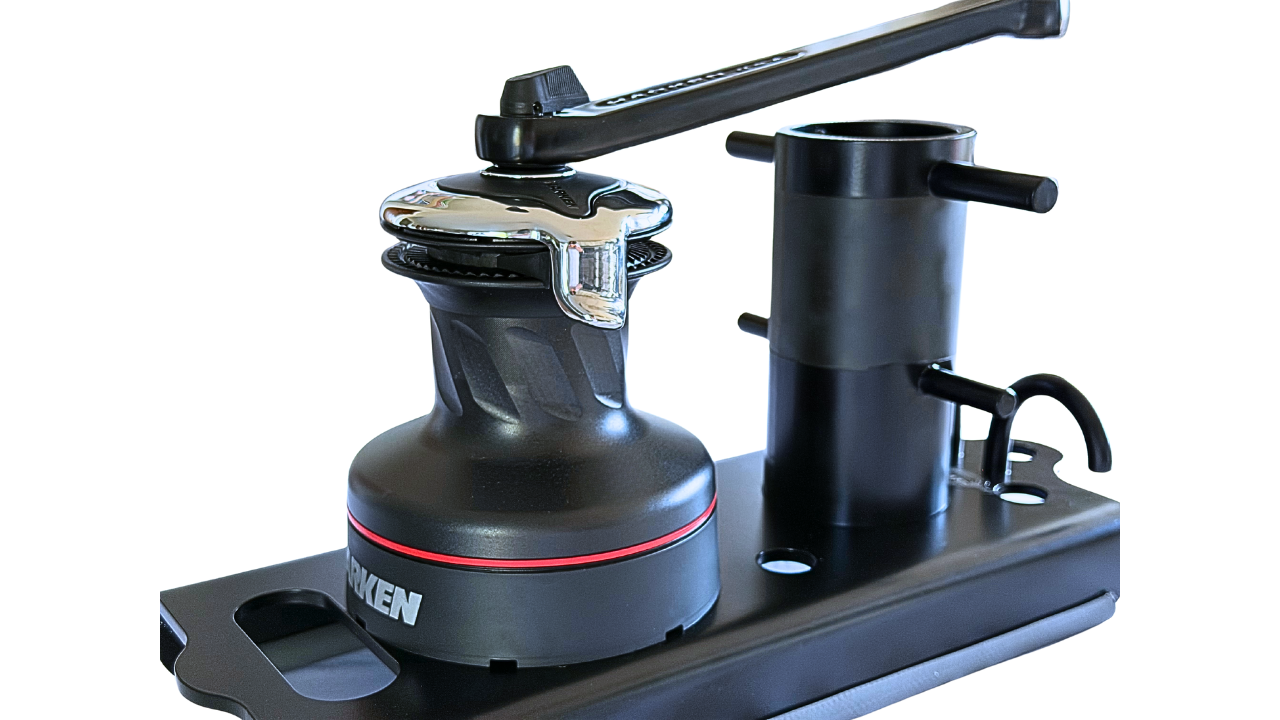

HOLD FAST XL RIGGING SYSTEM

Bigger winch. Beefier bollard. Still lightweight and compact.

The Hold Fast XL Rigging System was built for arborists who need more muscle without sacrificing portability. Designed to combine the mechanical advantage of a Harken Radial 40 self-tailing winch with the strength and stability of a fixed bollard, the XL offers simultaneous lifting and lowering in one compact, rugged package.

Whether you’re tackling heavy rigging, large removals, or high-demand job sites, the XL is your go-to tool for safe, smooth, and controlled rope management.

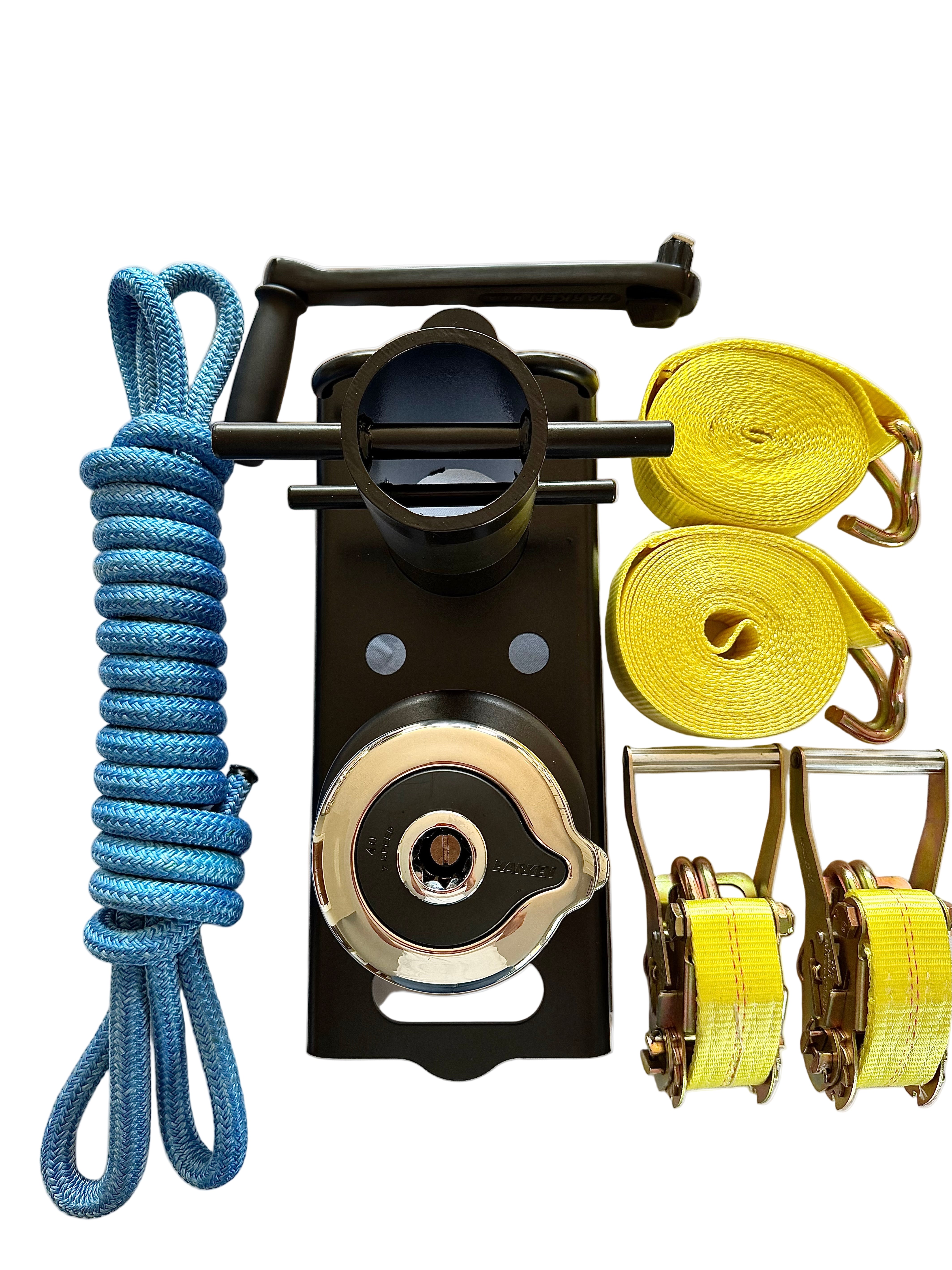

Kit includes:

• 1) Hold Fast OG Rope Management System
• 1) Dead eye sling (Color Varies)
• 2) Ratcheting strap
• 1) Winch Handle

Patent Pending.

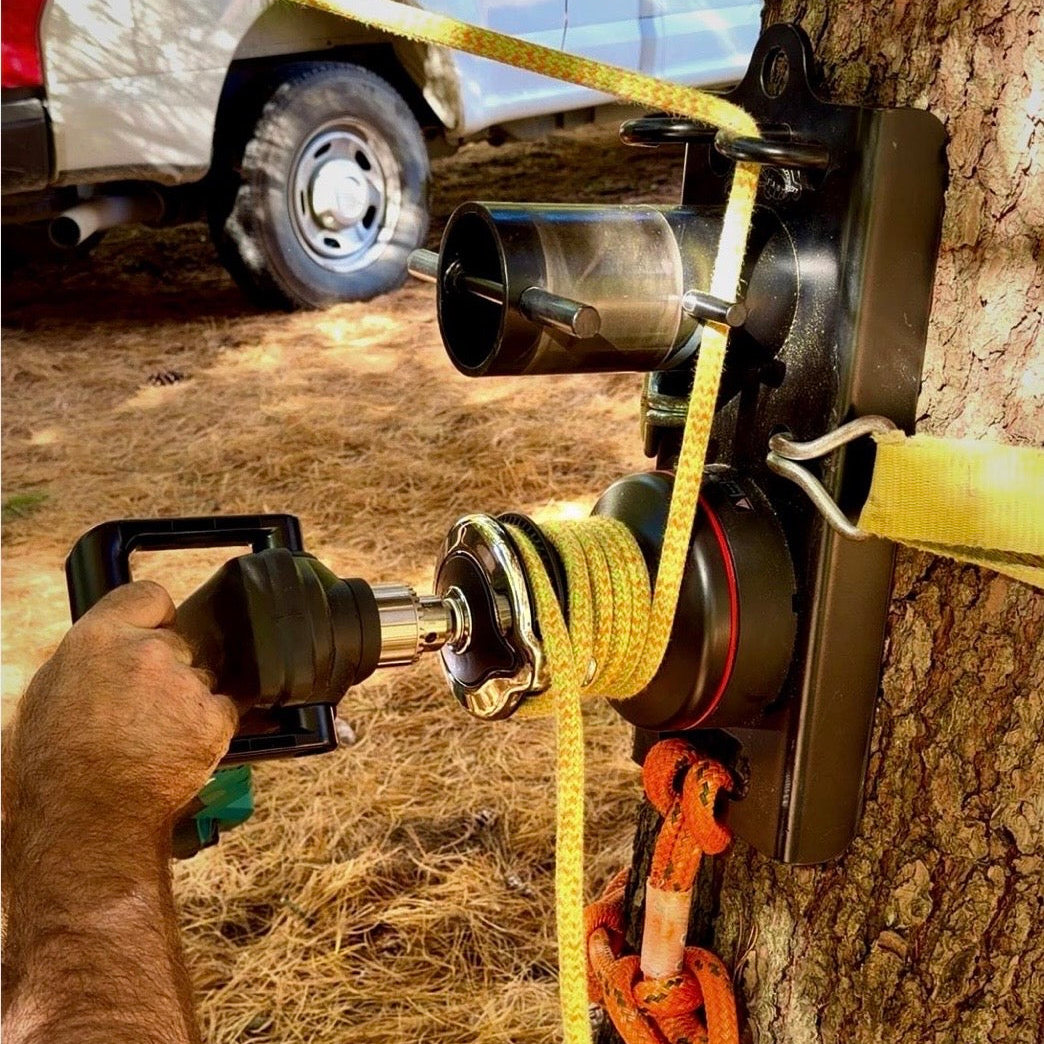

Don't forget the Harken Winch Driver Bit for use with a Right Angle Drill for easier lifting!

Currently shipping within the USA only. International customers can purchase Hold Fast Rigging Systems through our authorized dealer Arbsession at arbsession.com.

Hold Fast Rigging Quick Start Guide

Hold Fast Rigging Safety Manual

Harken 40 Winch Manual

Hold Fast Product Overview

Details

• Developed for heavier rigging applications requiring increased lifting power and control

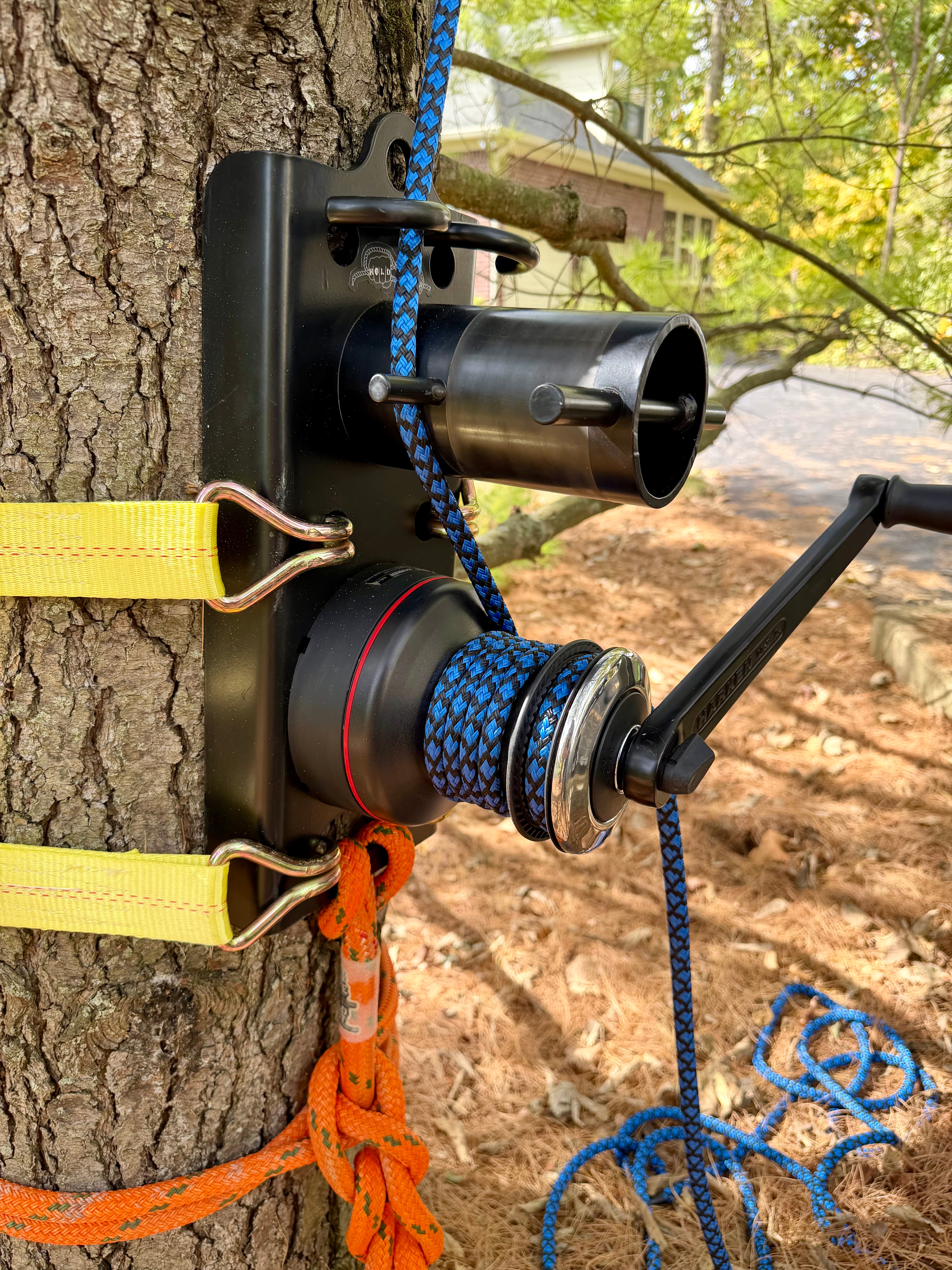

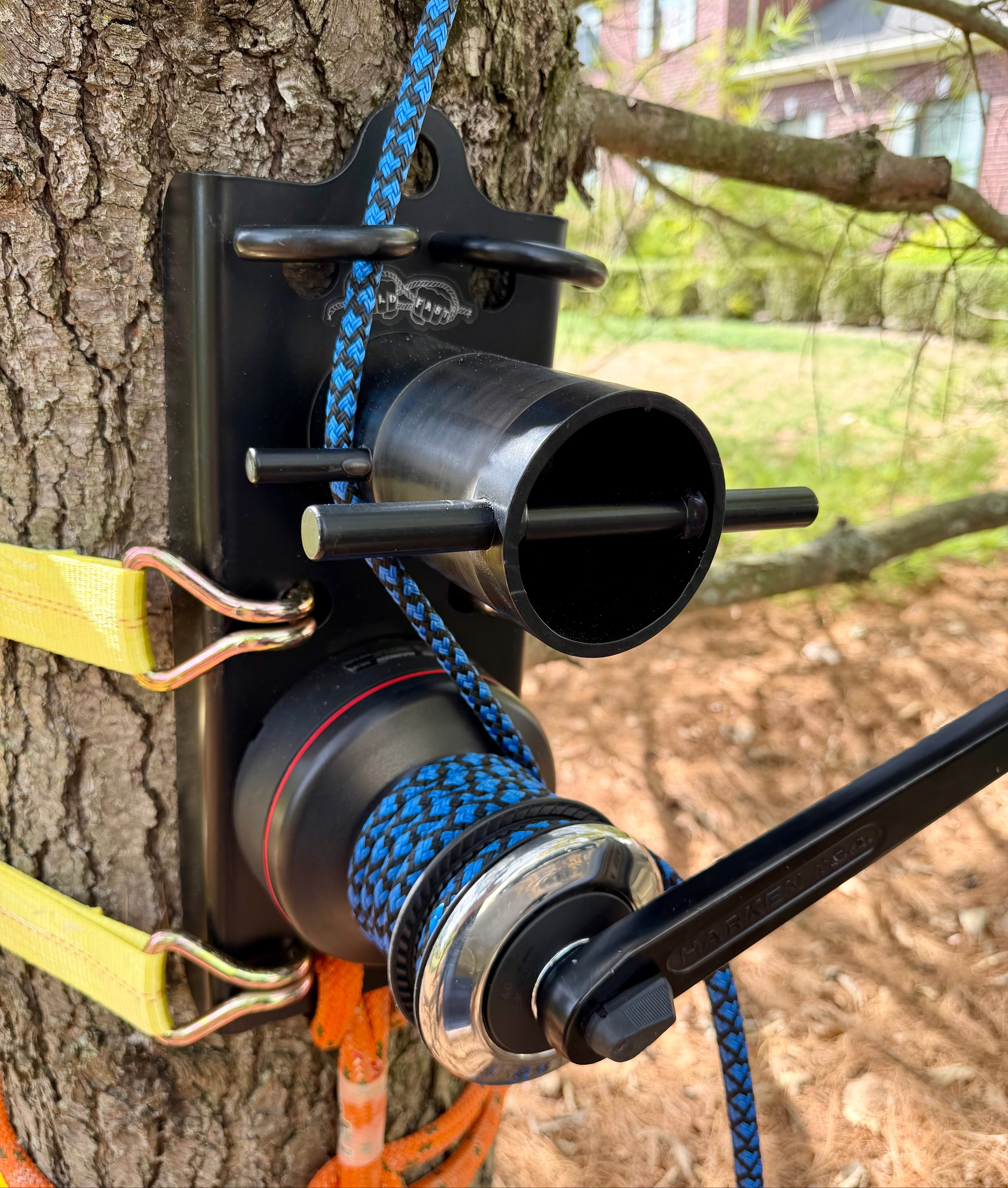

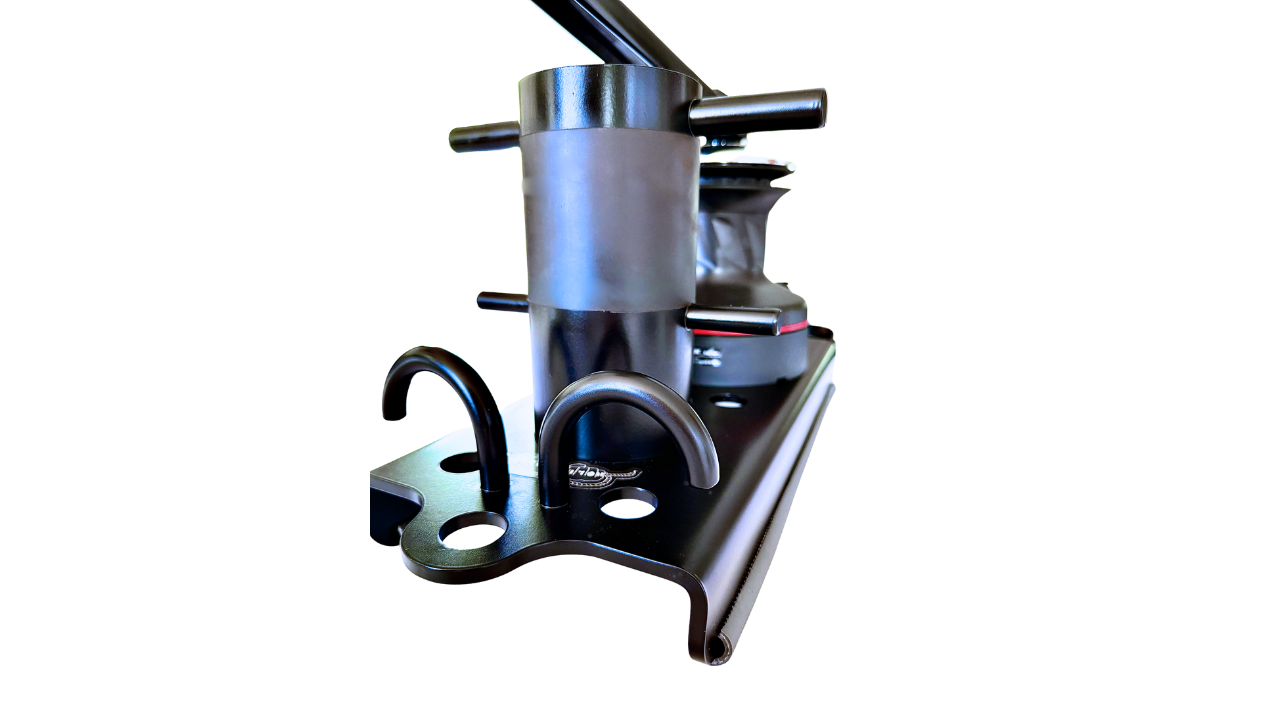

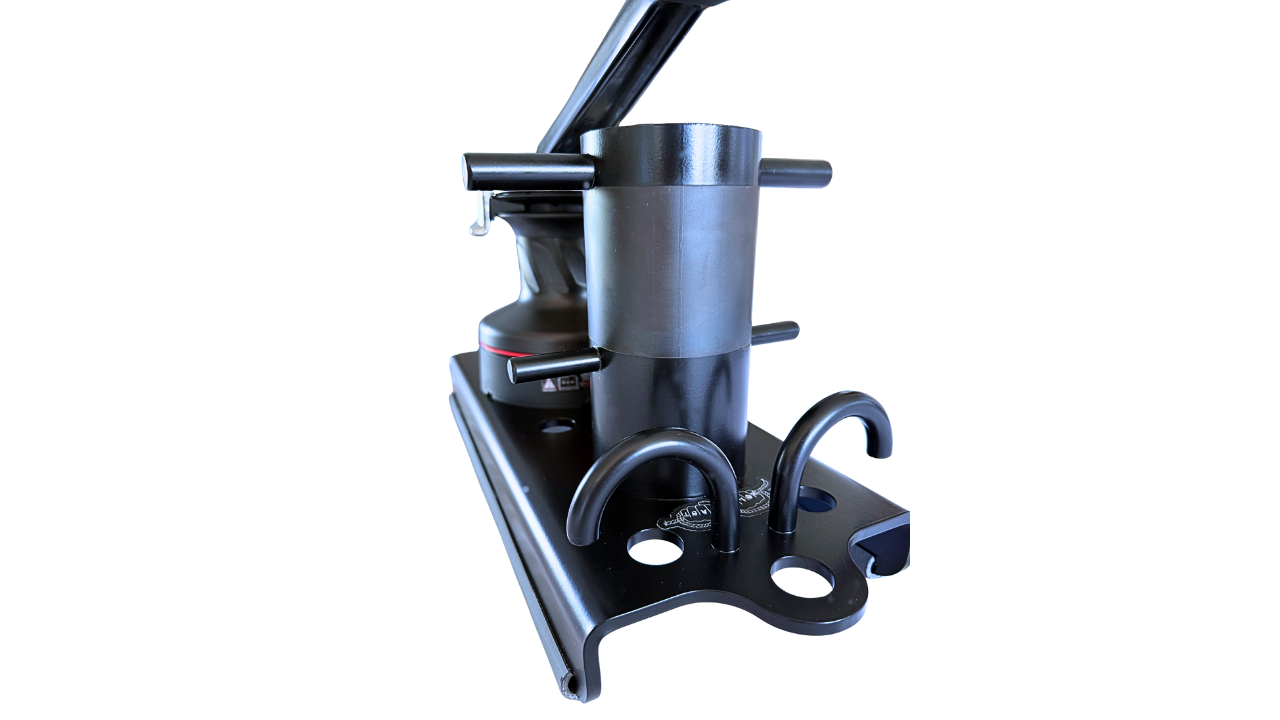

• Integrates a Harken Radial 40 dual-speed self-tailing winch with a fixed bollard mounted on a compact steel rigging plate

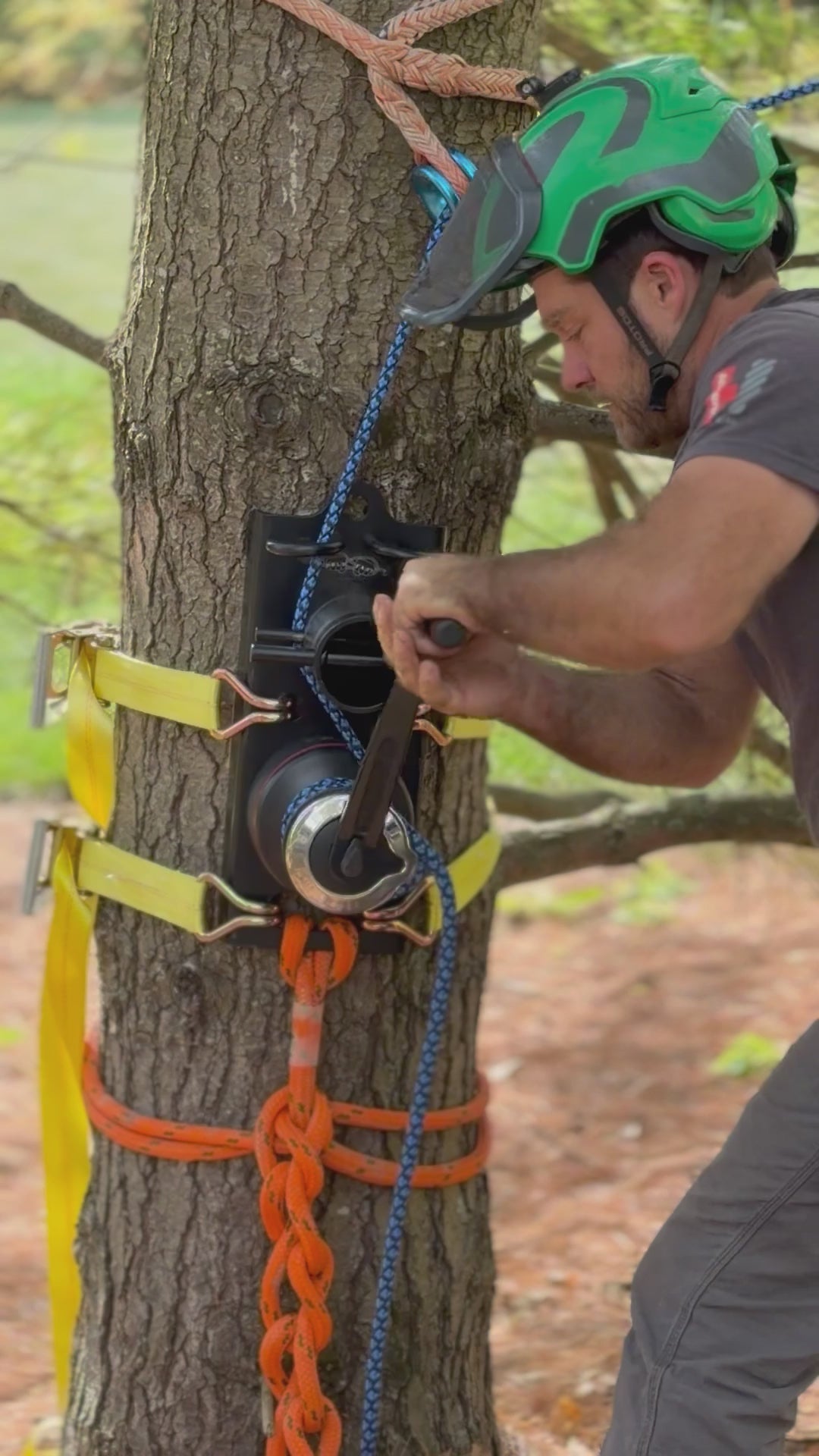

• Allows simultaneous lifting and lowering operations from one streamlined system
• Accepts either one rope or two separate ropes simultaneously for increased rigging versatility
• Strategically placed fairleads help properly align running lines while supporting additional rigging accessories
• Dual-speed self-tailing winch delivers approximately 13.5:1 and 39.9:1 mechanical advantage ratios for smooth and controlled lifting operations
• The dual-speed winch allows for both fast line take-up and high-power lifting control
• Powder-coated finish for durability and corrosion resistance
• Special bollard coating helps ropes run smoothly and cleanly during lowering operations

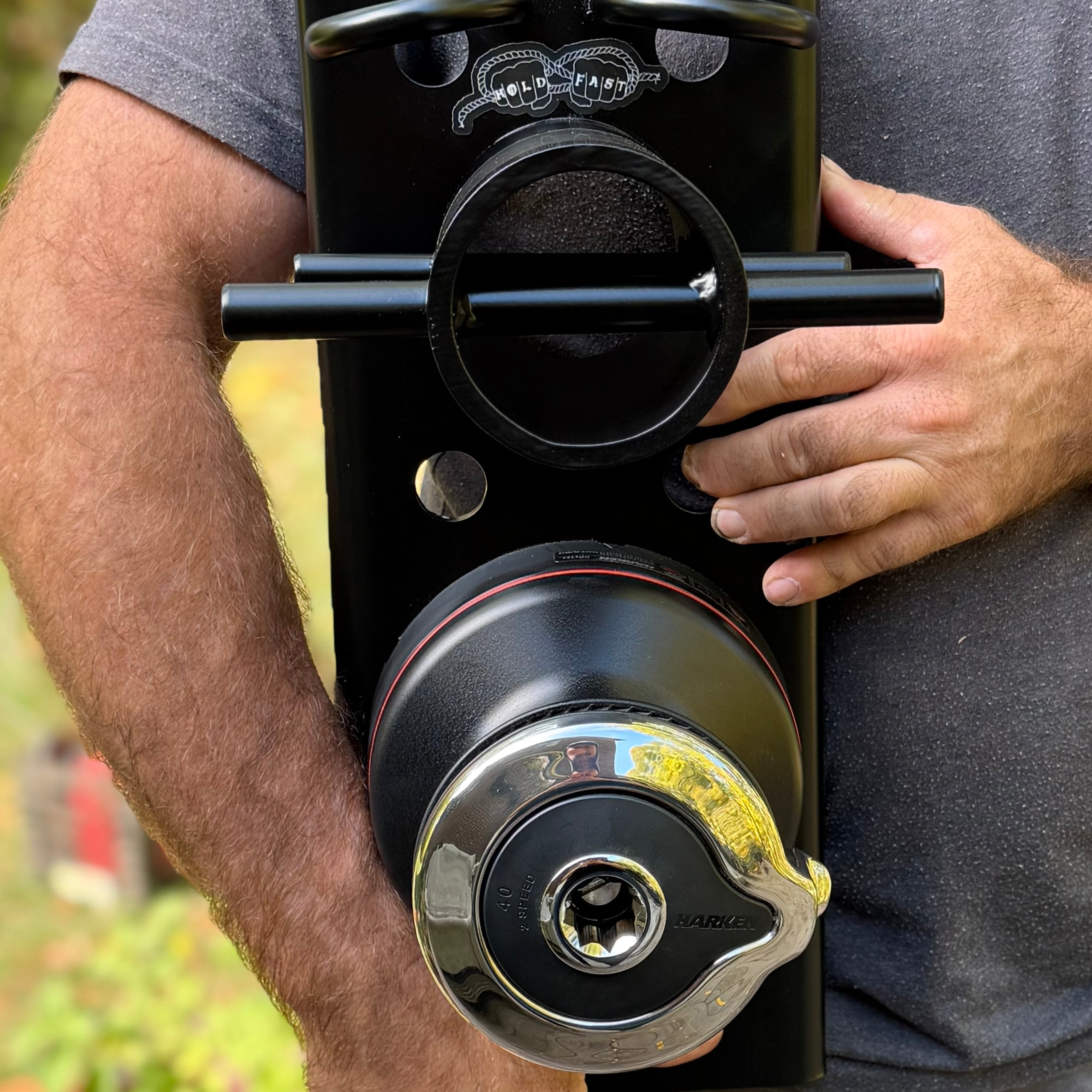

• Compact profile fits inside a standard rope bag while delivering increased rigging capability

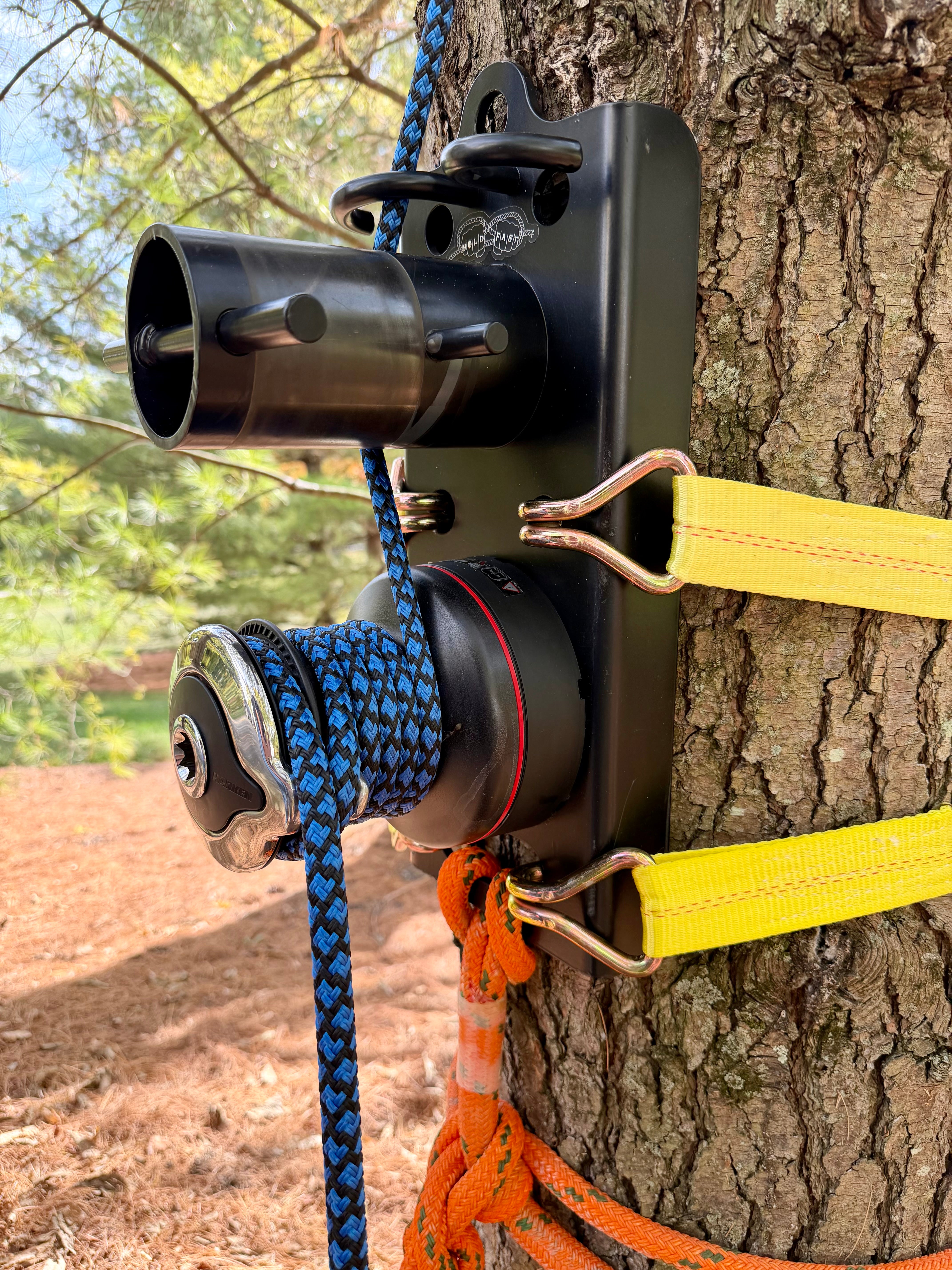

• Mounts vertically or horizontally, depending on the rigging application
• Designed for precision rigging, controlled lifting, and smoother load management

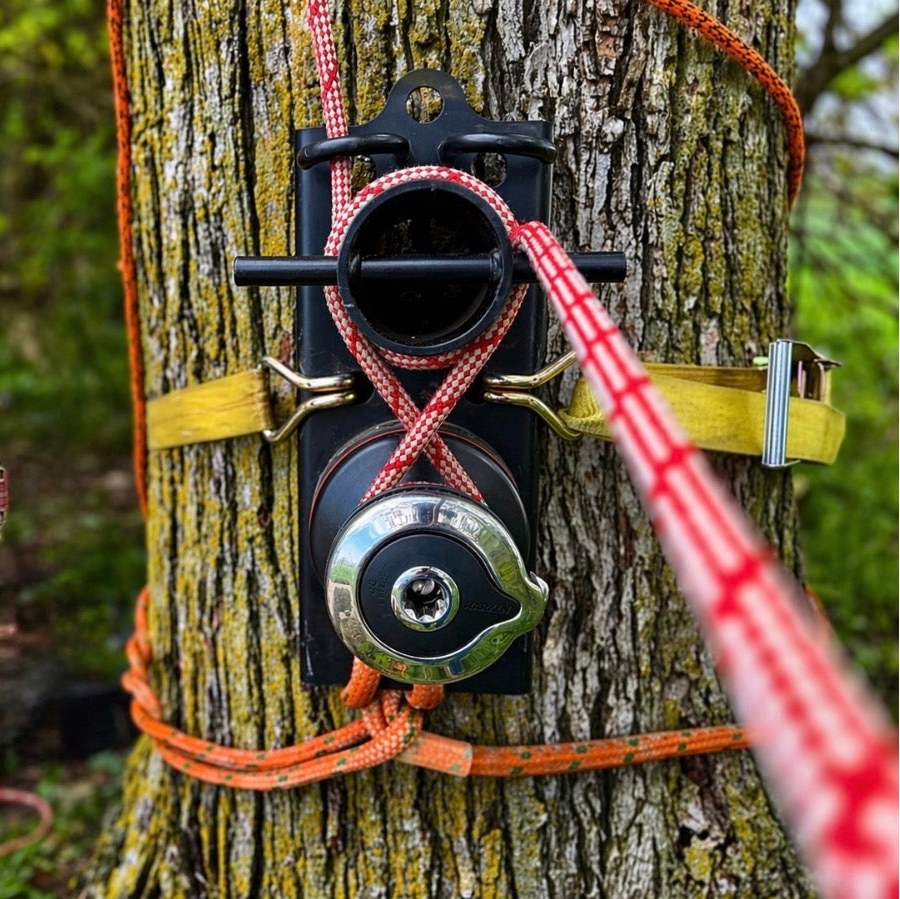

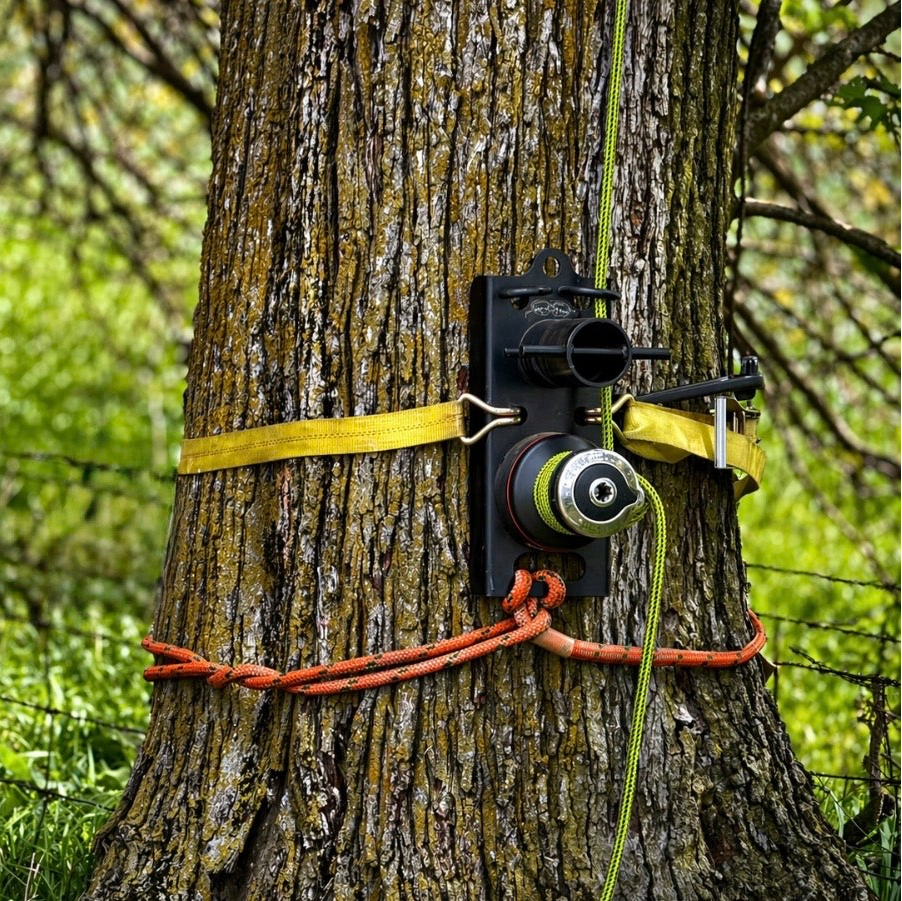

• Ratchet straps and dead-eye sling included for secure basal mounting
• Break tested and engineered with a 5:1+ safety factor
• Built and field-tested in the USA by professional arborists
• Scannable QR support resources available for setup instructions, manuals, and educational content
• Intended for use in accordance with ANSI Z133 safety practices

Specs

• Harken Radial 40 Dual-Speed Self-Tailing Winch
• Approximate Mechanical Advantage Ratios: 13.5:1 / 39.9:1
• Winch Rope Capacity: 1/2”
• Winch Working Load Limit: 1,500 lbs
• Fixed Bollard Rope Capacity: 5/8”
• Bollard Working Load Limit: 2,500 lbs
• Approximate System Weight: 28 lbs
• Length: 18.5”
• Width: 7 1/4”
• Plate Height: 2”
• Bollard Height: 7”
• Total Height: 9”
• Mounting Configuration: Vertical or Horizontal
• Includes: Hold Fast XL Rigging System, Harken Radial 40 ST Winch, Fixed Bollard, Ratchet Straps, 5/8” Dead-Eye Sling, Winch Handle
• Country of Manufacture: USA
• MPN: HF-Xl-28B
